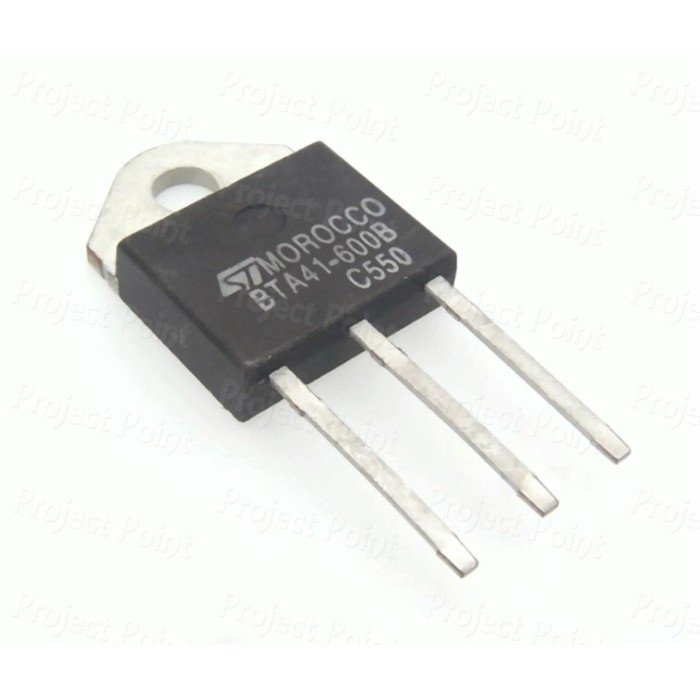

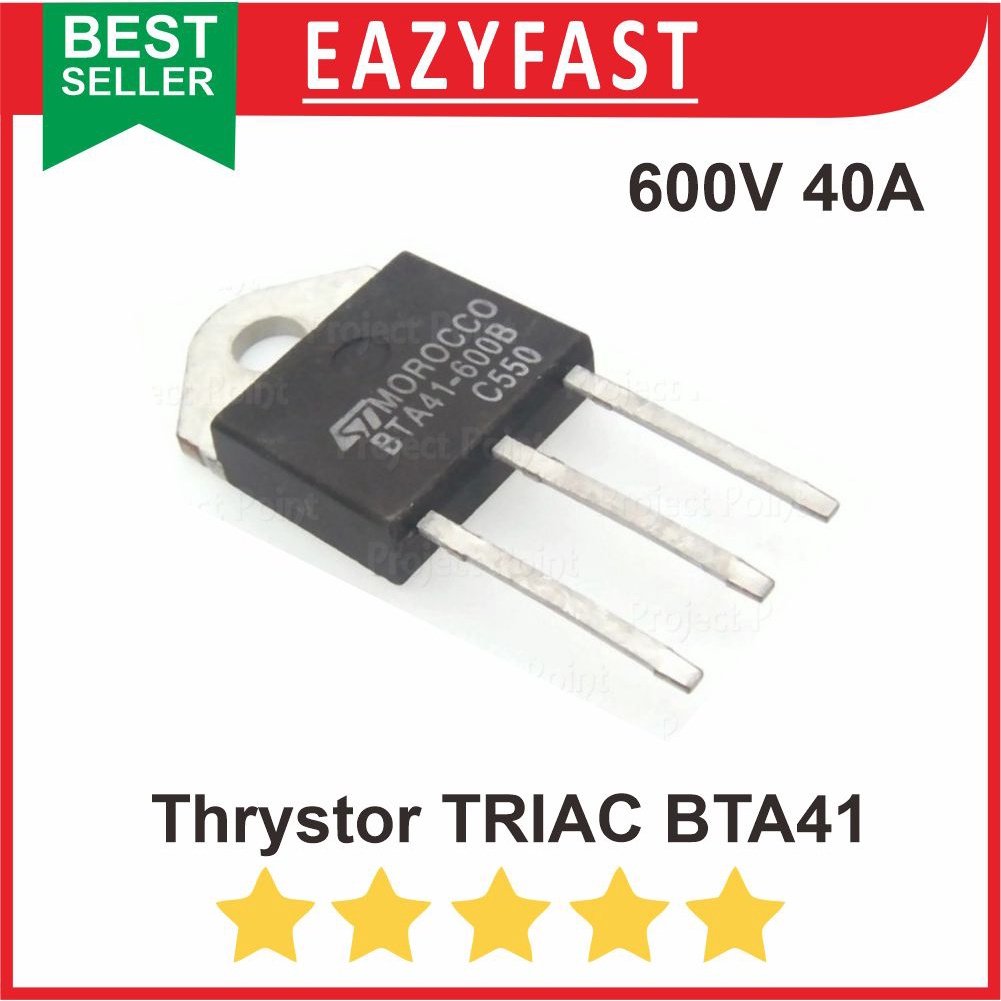

Thrystor TRIAC BTA41 BTA41-600 600V 40A TOP-3

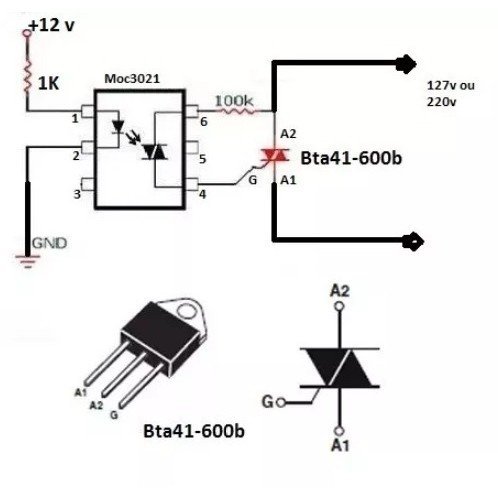

Bagi agan yang ingin mendrive device 220V tetapi nggak mau berisik dengerin relay cetak cetok, bisa pakai rangkaian triac controller. Salah satu komponennya adalah BTA41.
Specifications :
- IT(RMS) : 40A
- VDRM/VRRM : 600v
- IGT : 100mA
- VGT : 1.5v
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 125 C
Features
- High current TRIAC
- Low thermal resistance with clip bonding
- High commutation capability
- BTA series UL1557 certified (File ref: 81734)
- Packages are RoHS (2002/95/EC) compliant
Applications
- On/off function in static relays, heating
regulation, induction motor starting circuits
- Phase control operations in light dimmers,
motor speed controllers, and similar
Paket : 1x BTA41 BTA41-600 TOP-3 TRIAC 40A 600V THYRISTOR
Rp7.900
Habis, Lihat
Habis, Lihat
Spesifikasi
Ukuran
| Weight | 0,01 kg |
|---|---|
| Dimensions | 5 × 5 × 1 mm |
Bagi agan yang ingin mendrive device 220V tetapi nggak mau berisik dengerin relay cetak cetok, bisa pakai rangkaian triac controller. Salah satu komponennya adalah BTA41.
Specifications :
– IT(RMS) : 40A
– VDRM/VRRM : 600v
– IGT : 100mA
– VGT : 1.5v
– Minimum Operating Temperature: – 40 C
– Maximum Operating Temperature: + 125 C
Features
– High current TRIAC
– Low thermal resistance with clip bonding
– High commutation capability
– BTA series UL1557 certified (File ref: 81734)
– Packages are RoHS (2002/95/EC) compliant
Applications
– On/off function in static relays, heating
regulation, induction motor starting circuits
– Phase control operations in light dimmers,
motor speed controllers, and similar
Paket : 1x BTA41 BTA41-600 TOP-3 TRIAC 40A 600V THYRISTOR
