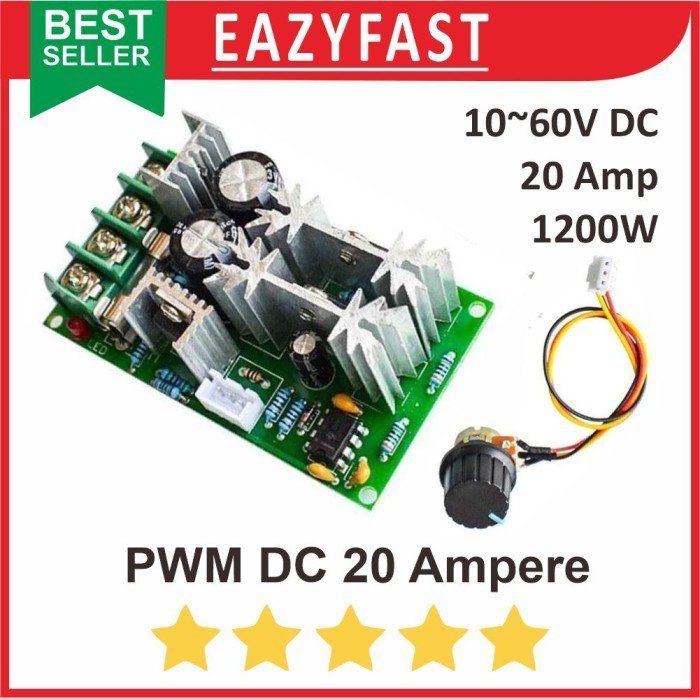

PWM DC 20A 1.2KW Variable Motor Speed Controller Dimmer Lampu LED Lamp

Product description
Input Voltage: DC10V-60V
Output Current: 20A(Long-term use of 10A, 450W or less, pay attention to keep the module unobstructed cooling.)
Speed Rate Range: 0%-100%
Speed control mode: potentiometer (linear)
PWM Freguency: 25KHZ
Extreme power: 1200W
Speed Type: Adjust Flow

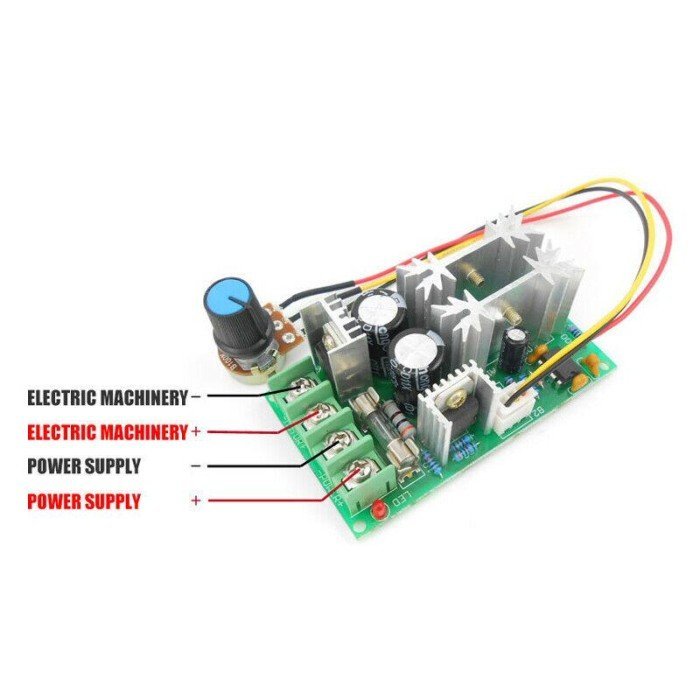

Wiring Type: Barrier Terminal Blocks
Knob line length: 20CM

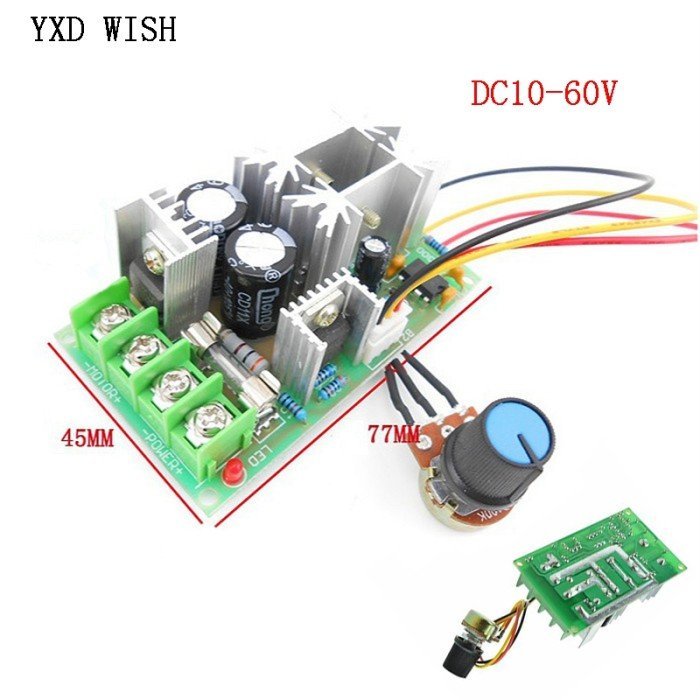

Motherboard installed size: length * width 73MM * 40MM
Potentiometer mounting hole: 7MM

Produk ini tidak ada garansi.
————-
Di karenakan:
1. Module harus di solder (dibutuhkan keahlian)
2. Kesalahan dalam perakitan mengakibatkan kerusakan module
3. Faktor2 lain seperti Tegangan Input berlebihan, Polaritas catu daya terbalik, dll
