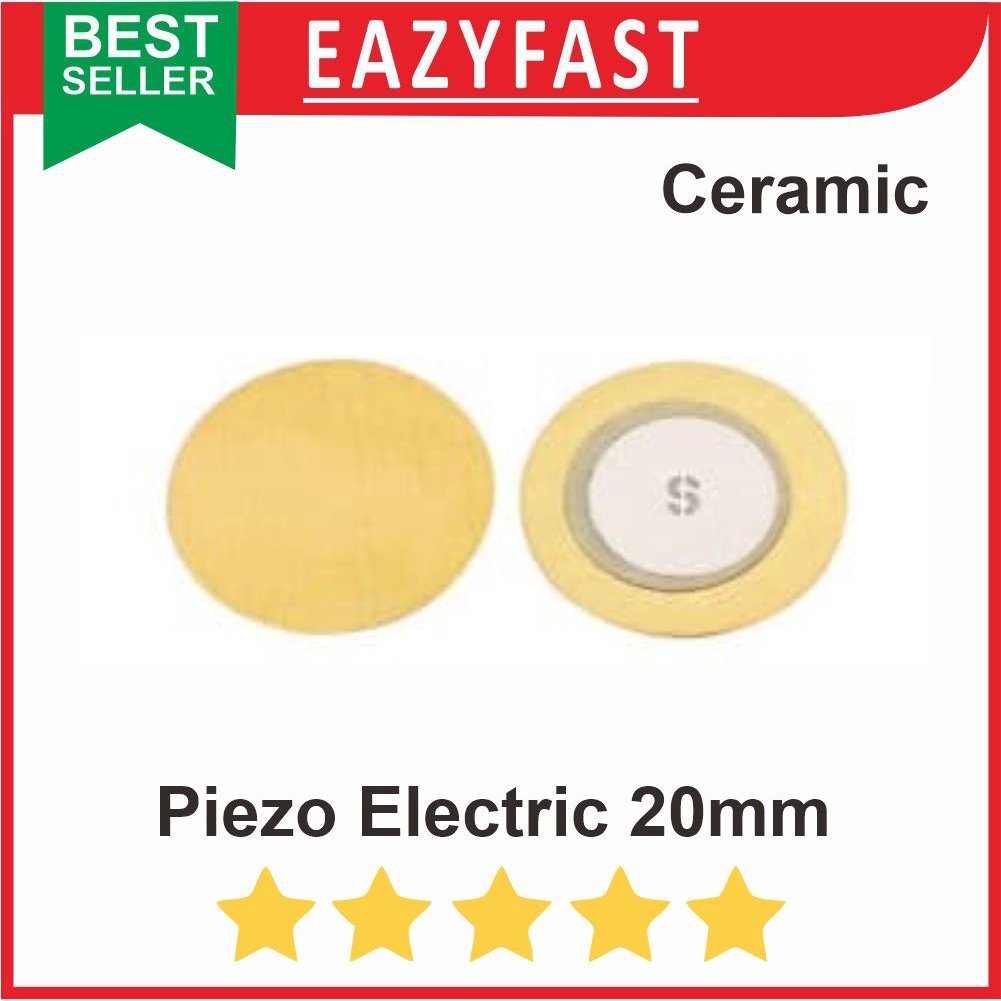

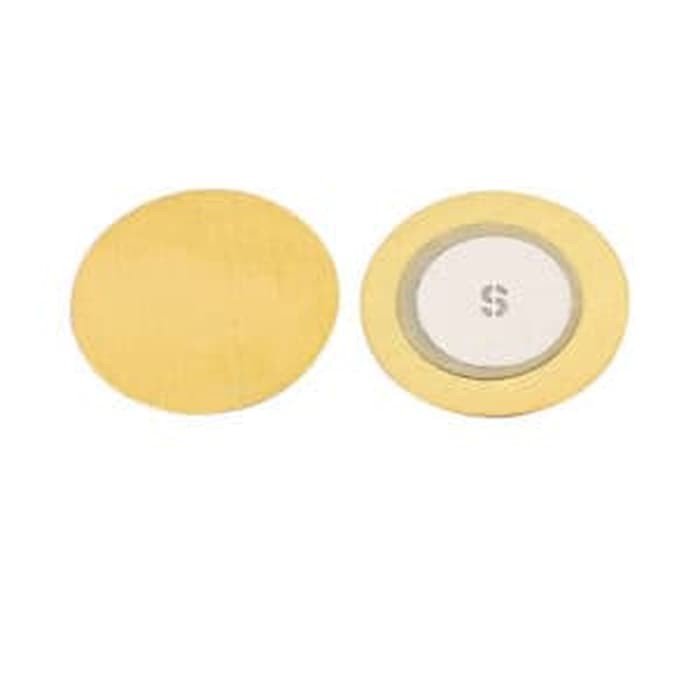

Piezo Electric Ceramic Buzzer atau Sensor Suara Tepuk Getar 20mm
Harga satuan utk 1 pcs
Dijual tanpa kabel, bisa disolder sendiri ya.
Piezoelectric element mempunya 2 fungsi:
1. Sebagai buzzer: menghasilkan suara jika diberi tegangan.
2. Mendeteksi getaran atau ketukan: menghasilkan tegangan.
**Spesifikasi:
- Warna: Kuning Emas
- Bahan: Kuningan dan Ceramic
- Resonant frequency: 3.6 +/- 0.5KHz
- Resonant resistance: < 300 Ohms
- Capacitance: 30000pF +/- 30%
- Tegangan input: 1.5 ~ 30Vp-p max
- Suhu kerja: -20 ~ +70C
- Suhu penyimpanan: -30 ~ +80C
**Aplikasi:
- Safety and Security
- Automotive Electronics
- Office Automation
- Medical Equipment
- Industrial
- Consumer Electronics
**Keunggulan Buzzer Piezo dibandingkan Buzzer Magnetic:
- Wide operating voltage
- Lower current consumption: less than 30mA Higher rated frequency
- Larger footprint
- Higher sound pressure level
Rp1.200
101 tersedia
101 tersedia
Spesifikasi
Ukuran
| Weight | 0,01 kg |
|---|---|
| Dimensions | 5 × 5 × 1 mm |
Harga satuan utk 1 pcs
Dijual tanpa kabel, bisa disolder sendiri ya.
Piezoelectric element mempunya 2 fungsi:
1. Sebagai buzzer: menghasilkan suara jika diberi tegangan.
2. Mendeteksi getaran atau ketukan: menghasilkan tegangan.
**Spesifikasi:
– Warna: Kuning Emas
– Bahan: Kuningan dan Ceramic
– Resonant frequency: 3.6 +/- 0.5KHz
– Resonant resistance: < 300 Ohms
– Capacitance: 30000pF +/- 30%
– Tegangan input: 1.5 ~ 30Vp-p max
– Suhu kerja: -20 ~ +70C
– Suhu penyimpanan: -30 ~ +80C
**Aplikasi:
– Safety and Security
– Automotive Electronics
– Office Automation
– Medical Equipment
– Industrial
– Consumer Electronics
**Keunggulan Buzzer Piezo dibandingkan Buzzer Magnetic:
– Wide operating voltage
– Lower current consumption: less than 30mA Higher rated frequency
– Larger footprint
– Higher sound pressure level
