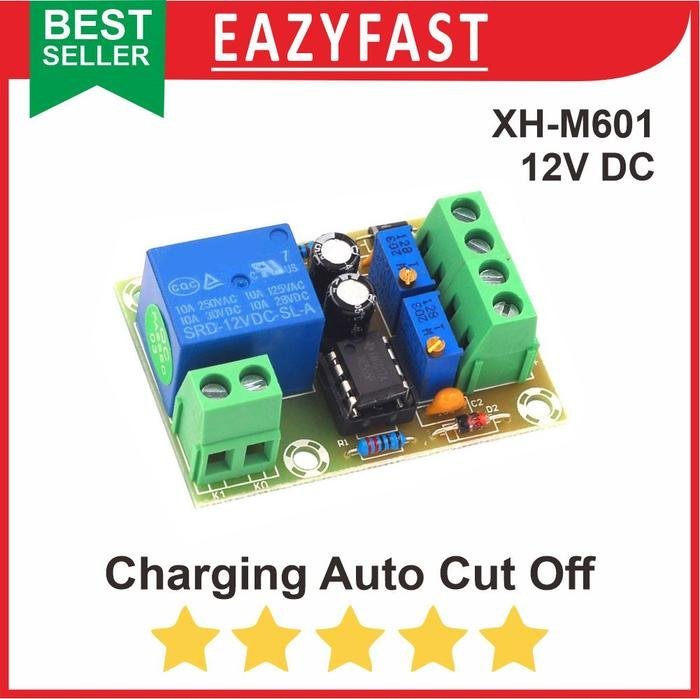

Charger Control Auto Cut Off XH-M601 Modul Otomatis Cas Battery Aki

Charger Control Auto Cut Off XH-M601 Modul Otomatis Cas Battery Aki

Battery Charger Controller Module yang berfungsi untuk mengontrol charging sistem battery 12 Volt, memproteksi dari overcharging.

Specifications :
– Model : XH-M601
– Power Supply : 13.8V-14.8V
– Relay closing voltage : 12.4V
– Relay off voltage : 14.8V
– Voltage error : 0.1V
– Voltage detection : DC voltmeter
– Charging type : 12V battery

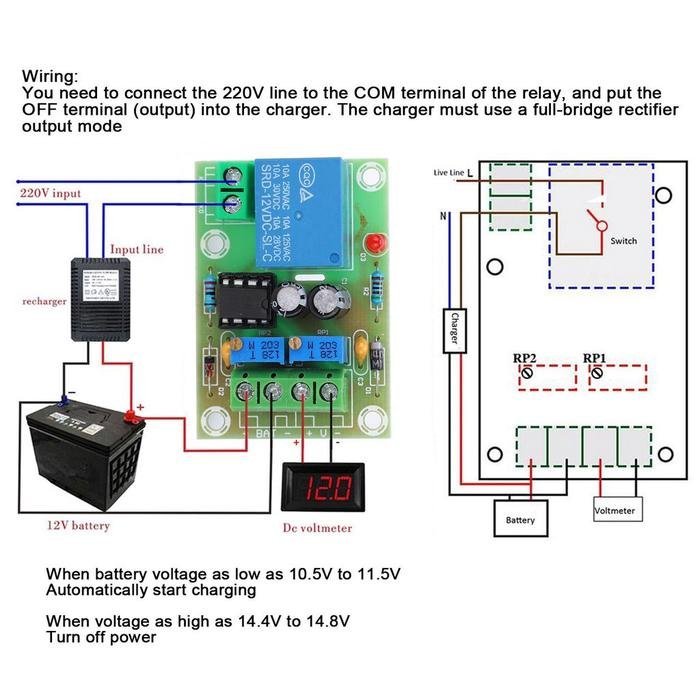

Potentiometer Adjustment:

1.RP1:adjust storage battery start charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)

2.RP2:adjust storage battery disconnect charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
