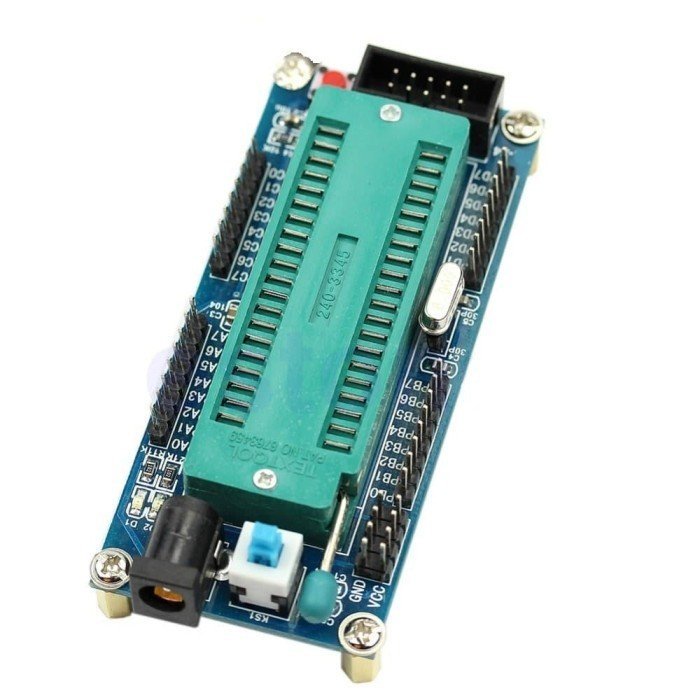

Sistem Minimum System Atmega16 Atmega32 Atmega8535 40 Pin AVR Sismin

Minimum System ATmega16 ATmega32 ATmega8535 AVR MinSys Sistem ATmel adalah development board yg support chip ATmega16/ATmega32 yg mudah digunakan tanpa harus menyolder.

Detail Produk:

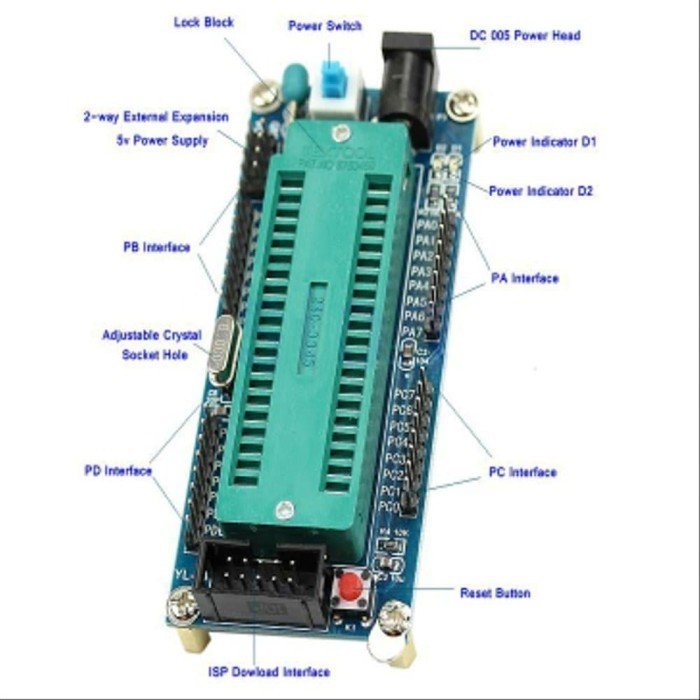

++ 32 I/O pin all the leads.
++ Classic ATmega16 minimum system, eliminating the hassle of soldering.
++ Crystal: The socket hole welding facilitate the buyer to replace the crystal, 8M crystal.
++ Support chips: ATmega16/ATmega32 and chip which pin-compatible.
++ Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply)
++ DC-005 Power Block (supporting the transposon is 5.5*2.1mm).
++ Expand outside 4 channel VCC, GND.
++ Reset: Power-on reset and reset button.
++ Power LED (D1) and the program run indicator (D2).
++ Standard ISP download interface.
++ Size : 88mmx38mm

Isi Paket:
1x Minimum System ATmega16 ATmega32 ATmega8535 AVR MinSys Sistem ATmel
