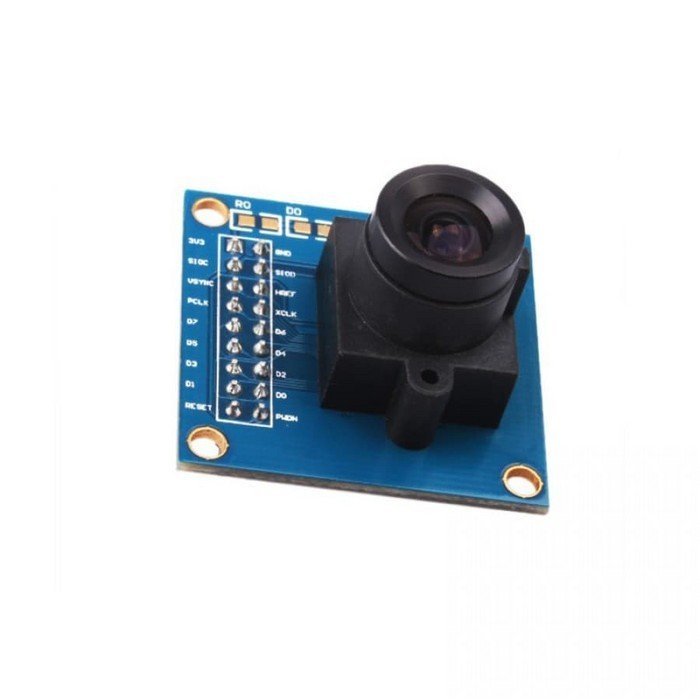

Sensor Kamera Camera Module OV7670 Arduino

Camera Module OV7670 ini dapat digunakan untuk Arduino, Maple, ChipKit, STM32, ARM, DSP, FPGA. Dengan resolusi 640×480 0.3 MP untuk mengambil gambar dan video.

Detail Produk:
++ Optical size 1/6 inch
++ Resolution 640480 VGA
++ Onboard regulator, only single 3.3V supply needed
++ Standard 0.1inch (2.54mm) pin pitch header connector
++ Mounted with high quality F1.8 / 6mm lens
++ Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) formats
++ High sensitivity for low-light operation
++ Low operating voltage for embedded portable apps
++ Standard SCCB interface compatible with I2C interface
++ Supports image sizes: VGA, CIF, and any size scaling down from CIF to 4030
++ VarioPixel method for sub-sampling
++ Automatic image control functions including: Automatic
++ Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic
++ Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
++ Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
++ ISP includes noise reduction and defect correction
++ Supports LED and flash strobe mode
++ Supports scaling
++ Lens shading correction
++ Flicker (50/60 Hz) auto detection
++ Saturation level auto adjust (UV adjust)
++ Edge enhancement level auto adjust
++ De-noise level auto adjust

Isi Paket:
1x Camera Module OV7670
