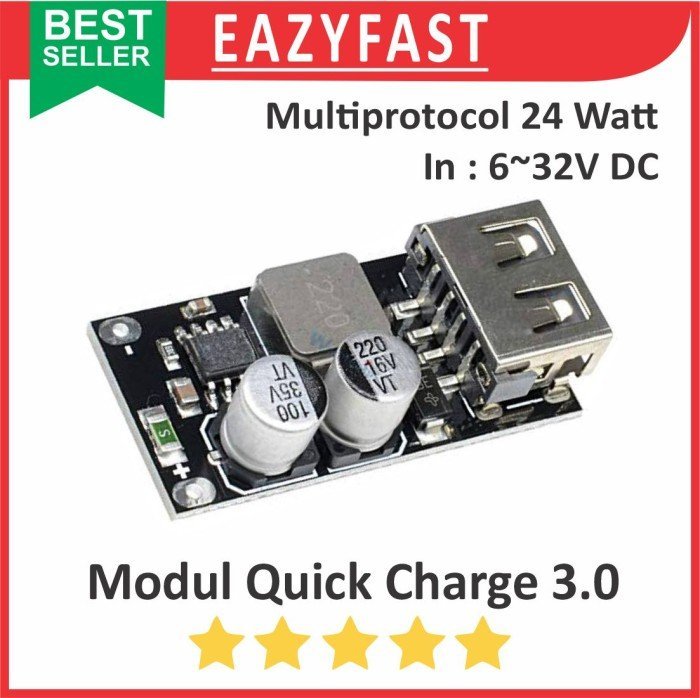

Modul USB Fast Quick Charge QC 3.0 MultiProtocol Multi Protocol 24W Charger Charging Lithium Ion TP4056 Module HW-298

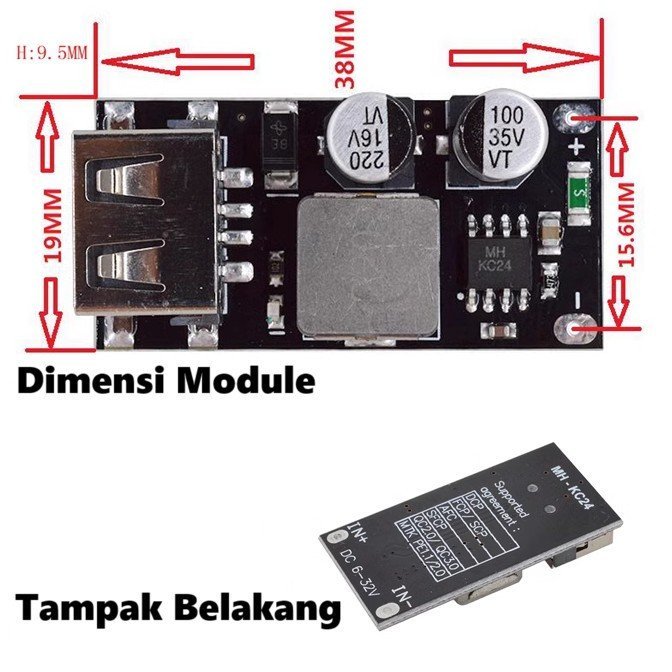

Module Features
1. Built-in synchronous switch step-down converter chip
2. Input voltage range: 4.5V to 32V ( the input voltage must be higher than the output voltage, because it is a voltage drop module )
3. Output voltage range: 3V to 12V , automatically adjusted according to the fast charging protocol
4. Output power: maximum 24W ( 4V@3.6A , 5V@3.4A , 9V@2.5A , 12V@2A , etc.)
5. Output voltage wired compensation
6. The output has CV/CC characteristics (output current is less than the set value, output CV mode; output current is greater than the set value, output CC mode)
7. The conversion efficiency is up to 97%
8. Soft start function
9. 220Khz switching frequency

Output fast charge

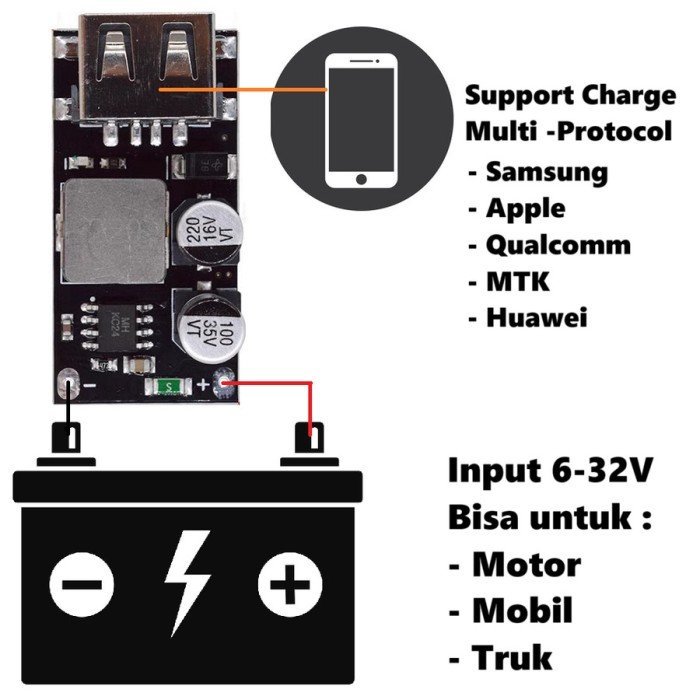

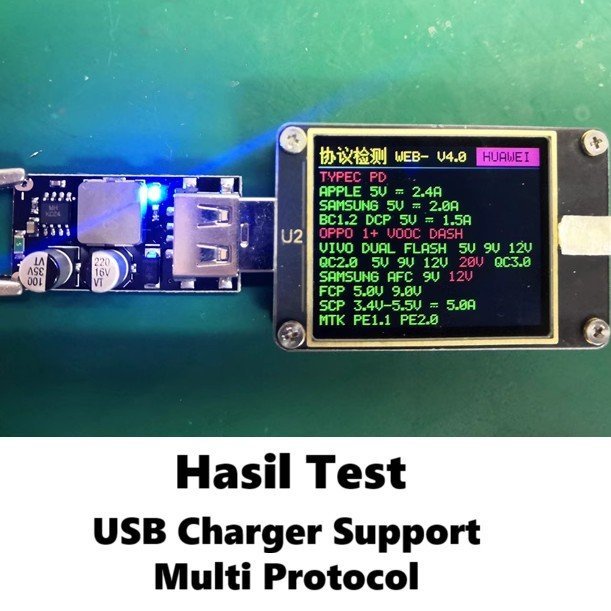

1. Support BC1.2 , Apple , Samsung protocols
2. Support Qualcomm QC2.0 and QC3.0
3. Support MTK PE1.1/PE2.0
4. Support Huawei fast charging protocol FCP
5. Support Samsung fast charging protocol AFC
6. Support Spreadtrum fast charging protocol SFCP

Multiple protection, high reliability
1. Output overcurrent, input overvoltage, input undervoltage, output short circuit protection
2. Over-temperature protection of the whole machine
3. ESD 4KV , DC withstand voltage 48V

Use
The USB output voltage depends on your device. The output voltage of different devices is different. The conventional USB output voltage is 5V. It can output different fast charging voltages according to the QC protocol. Generally, the fast charging voltage of mobile phones is 9V 12V, and some devices support 5V high current fast charging . , Low-current charging for devices that do not support fast charging.
