Modul Solid State Relay SSR 2Ch 2 Ch Chanel Channel 5 V Volt 5V DC Module SPDT Low Level Arduino Compatible Opto Isolation

Modul Solid State Relay SSR 2Ch 2 Ch Chanel Channel 5 V Volt 5V DC Module SPDT Low Level Arduino Compatible Opto Isolation

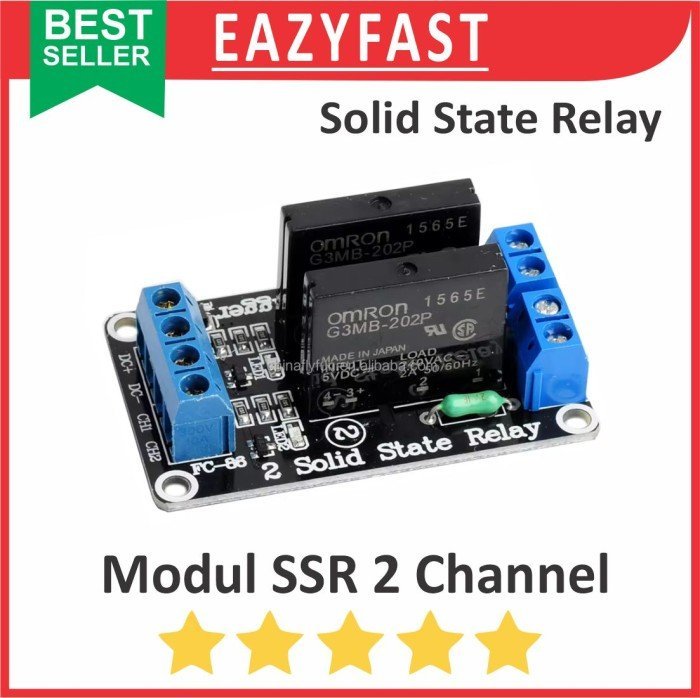

Modul Relay yang menggunakan Solid State Relay Omron 5v 2 Channel berkualitas tinggi, lebih baik dibandingkan dengan relay elektromagnet (mechanical) konvensional.

Spesifikasi:
1. Omron G3MB-202P: 5V solid state relay 240V 2A, output dengan resistive fuse 240V 2A
2. Ukuran: 25x34x25mm
3. Tegangan input: 5V DC (160mA)
4. Tegangan utk control input:
(0-2.5V LOW >> relay OFF)
(3-5V HIGH >> relay ON)
5. Dengan terminal baut KF301 memudahkan pemasangan kabel
6. Quiescent current: 0mA
7. Operating current: 12.5mA
8. Trigger voltage: 3.3-5v (2mA)

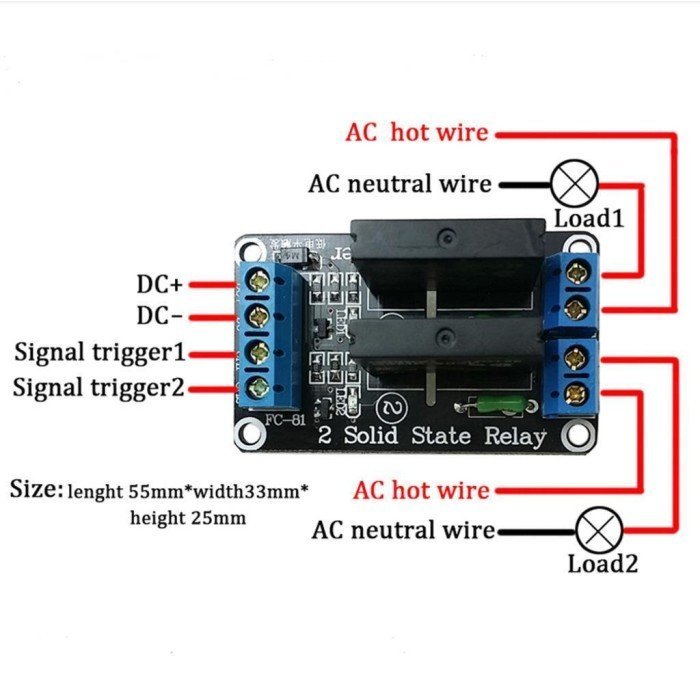

**Cara pemakaian (Cek Foto)
DC+: positif power supply
DC-: negatif power supply
CH: sinyal input

The Omron 2 Channel 5V DC SSR Relay Module is a high-quality solid-state relay solution for your Arduino projects. Designed for precision and safety, this module allows you to control high-voltage devices with ease. Built with Omron’s renowned reliability, it ensures long-lasting performance. With 2 channels and a 5V DC input, it’s ideal for automation, robotics, and IoT applications. Enhance your project’s efficiency and reliability with this SSR relay module.
