Modul Radio Serial UART HC-12 Wireless 433Mhz Arduino ESP 1km HC 12 433 Mhz Module Si4463

HC-12 wireless RF UART communication module is a new generation of multi-channel embedded wireless data transmission module. The Radio frequency of 433.4 – 473.0MHz, can be setting a communication channel, step is 400kHz, a total of 100 channels. The module maximum transmit power is 100mW (20dBm), and -116dBm receiver sensitivity air of the 5000bps baud rate, communication distance about 500 meters.

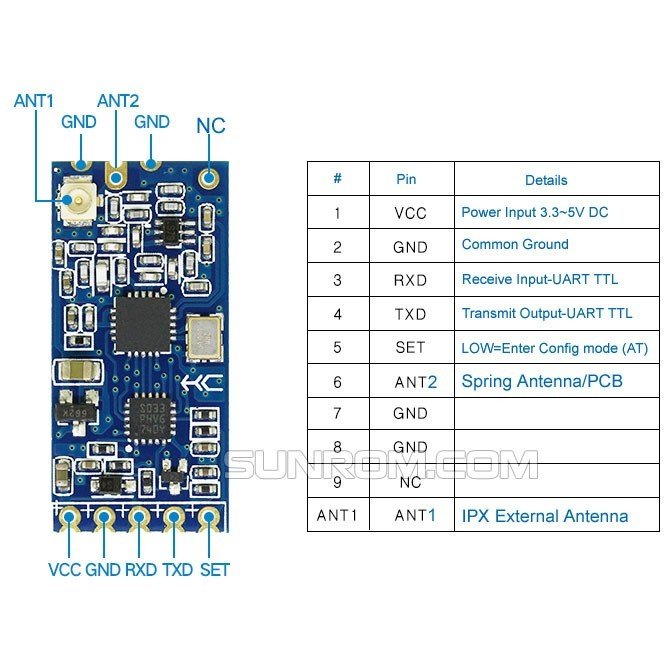

The module also has antenna welding hole ANT2, convenient user welded spring antenna. The user can choose one kind of antenna according to the request. The module contains MCU, users do not need to program in addition, just send and receive UART data.

Features :
– IEEE 802.15.4g compliant
– Frequency range = 119–1050 MHz
– Receive sensitivity = –126 dBm

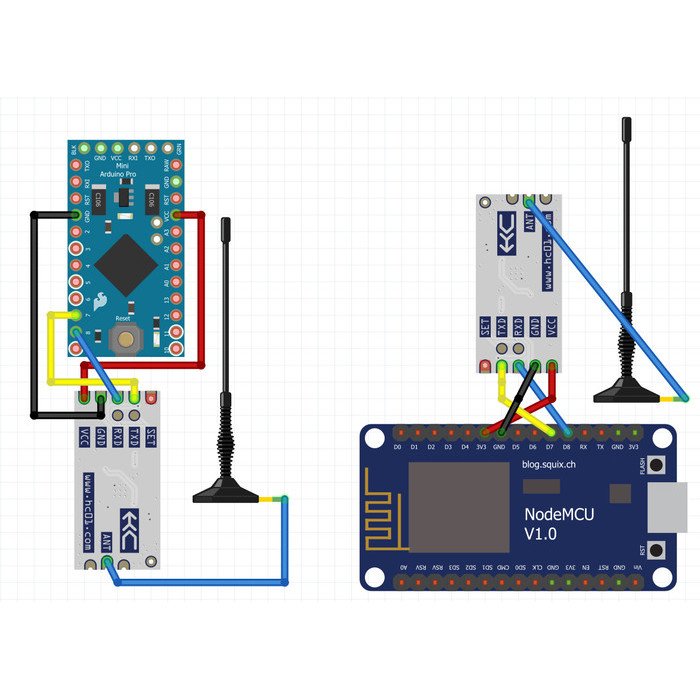

– Serial TTL (RX, TX, GND) interface
– Modulation (G)FSK, 4(G)FSK, (G)MSK, OOK
– Max output power +20 dBm
– Low active power consumption 10/13 mA RX, 18 mA TX at +10 dBm
– Ultra low current powerdown modes 30 nA shutdown, 50 nA standby
– Data rate = 100 bps to 1 Mbps
– Fast wake and hop times
– Highly configurable packet handler
– TX and RX 64 byte FIFOs
– Auto frequency control (AFC)
– Automatic gain control (AGC)
– Low BOM
– Low battery detector
– FCC Part 90 Mask D, FCC part 15.247, 15,231, 15,249, ARIB T-108, T-96, T-67, RCR STD-30, China regulatory
– ETSI Class-I Operation with SAW
