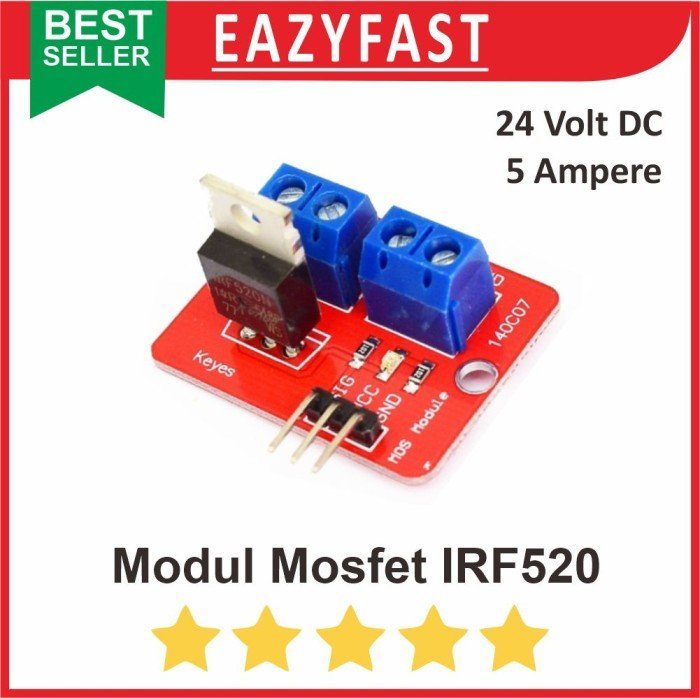

Modul Mosfet IRF520 24V 5A Switch Trigger Driver PWM Relay Module

Mosfet IRF520 0 – 24v 5A Motor Solenoid LED Driver Module

Module ini menggunakan IRF520 power MOS tube sehingga dapat mengatur output PWM (dapat mengatur terang LED, motor speed regulation , dll), dan bisa menjalankan beban hingga 24v seperti LED , DC motor , micro pump, solenoid valve.

Spesifikasi:
– Ukuran: 33.4 * 25.6MM
– Voltase: 3.3V, 5V
– Voltase Output : 0 to 24V
– Arus Output : < 5A (lebih besar dari 1A tambahkan heat sink)
– Bisa untuk: Arduino, MCU, ARM, Raspberry Pi
– Weight: 10g
– Voltage: 3.3V, 5V
– Ports: Digital Level
– Output load voltage :0-24V
– Output load current: 5A (1A above need to add heat sink)
– Platform: Arduino, MCU, ARM, raspberry pie
– Using original IRF520 Power MOS, you can adjust the output PWM
– Arduino drive up to 24V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves
– PWM dimming LED can be used to achieve stepless dimming, variable speed motor

Aplikasi:
1. Driver Motor
2. Diming LED Strip
3. Kontrol Selenoid
4. Kontrol Pump DC
5. Charger Aki
