Modul Micro SD MicroSD Card Reader Writer Arduino Read Write

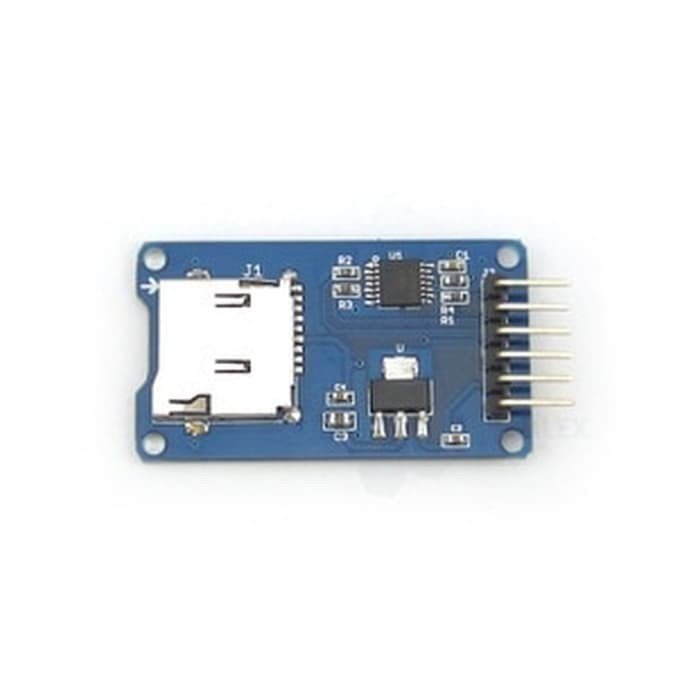

1 x Micro SD card reader and writer module

Modul micro SD card reader and writer ini memungkinkan microcontroller untuk membaca dan menuliskan data ke micro SD card layaknya sebuah hand phone. Modul ini menggunakan standar komunikasi SPI interface FZ0829.

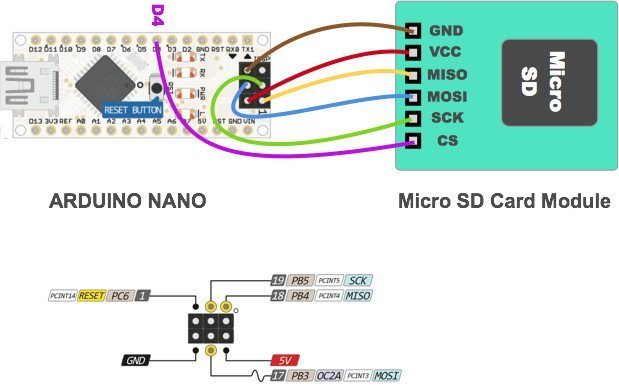

Cara pemasangan pada Arduino Uno:
> Pin GND GND
> Pin 5V VCC
> Pin 10 CS (SS = Slave Select)
> Pin 11 DI (MOSI = Master Out Slave In)
> Pin 12 DO (MISO = Master In Slave Out)
> Pin 13 CLK (SCK = System Clock)

Cara pemasangan pada Arduino Mega 2560:
> Pin GND GND
> Pin 5V VCC
> Pin 50 CS (SS = Slave Select)
> Pin 51 DI (MOSI = Master Out Slave In)
> Pin 52 DO (MISO = Master In Slave Out)
> Pin 53 CLK (SCK = System Clock)

Spesifikasi:
Power Supply: 5V (4.5-5.5V)
Arus: 80mA (Maksimal 200mA)
Interface Power Supply: 3.3V atau 5V
Tipe Card yg didukung: Micro SD Card (Maksimal 2G) / Micro SDHC Card (Maksimal 32G)
Ukuran: 42x24x12mm
