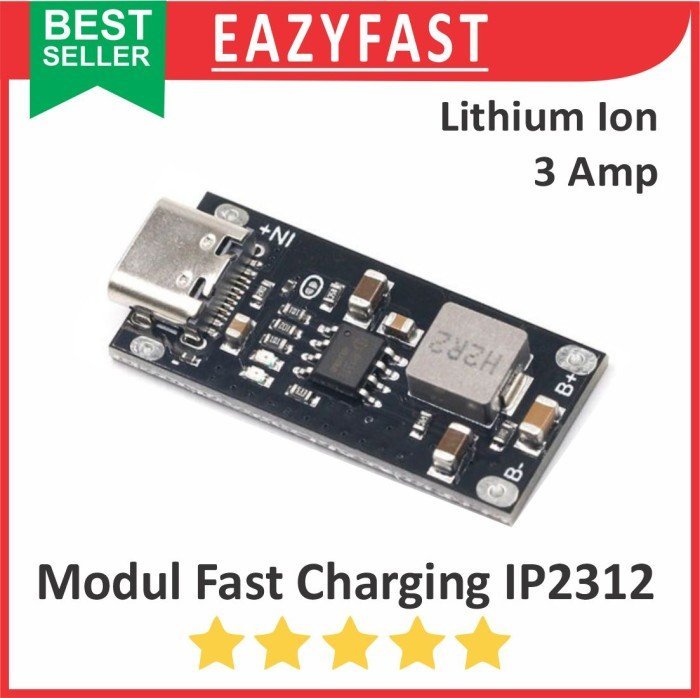

Modul Fast Quick Charge IP2312 USB Type C 3A QC Charger Charging Baterai 18650 Li Ion Lithium TP4056 Module

Modul Fast Charging IP2312 TYPE C 3A untuk Baterai 18650 Li-ion Lithium

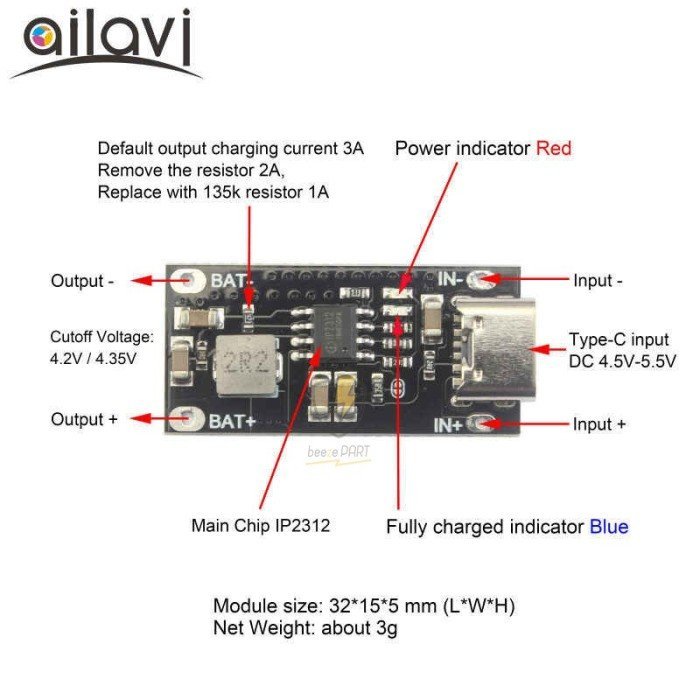

3A charging current,can change the current through adjusting resistance;2 types of cut-off voltage can be optional(4.2V/4.35V).

3A polymer ternary lithium battery,quick charging board,provides efficient working effects.
Note: this product does not have the power indicator function, does not have the battery protection function, the store also has the lithium battery protection board and the power indicator board to sell.

Conversion efficiency: 3A 93%, 2A 94%, 1A 95% (data for reference only).

Specification:

– Main-control Chip: IP2312
– Type: Fast Charging Board
– Output: 4.2V,4.35V(optional)
– Input: 4.5-5.5V
– Charging Current: 3A
– Size: One Size

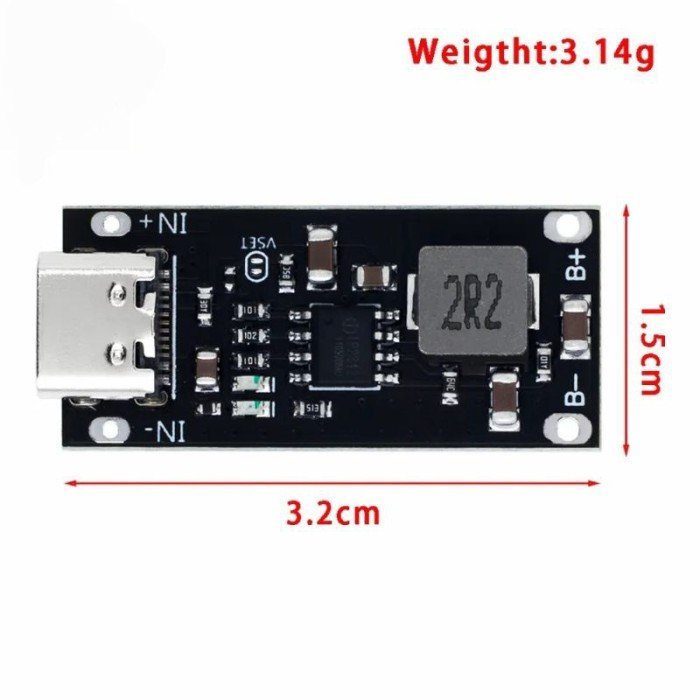

– 1.5x3cm(0.59×1.18in)
