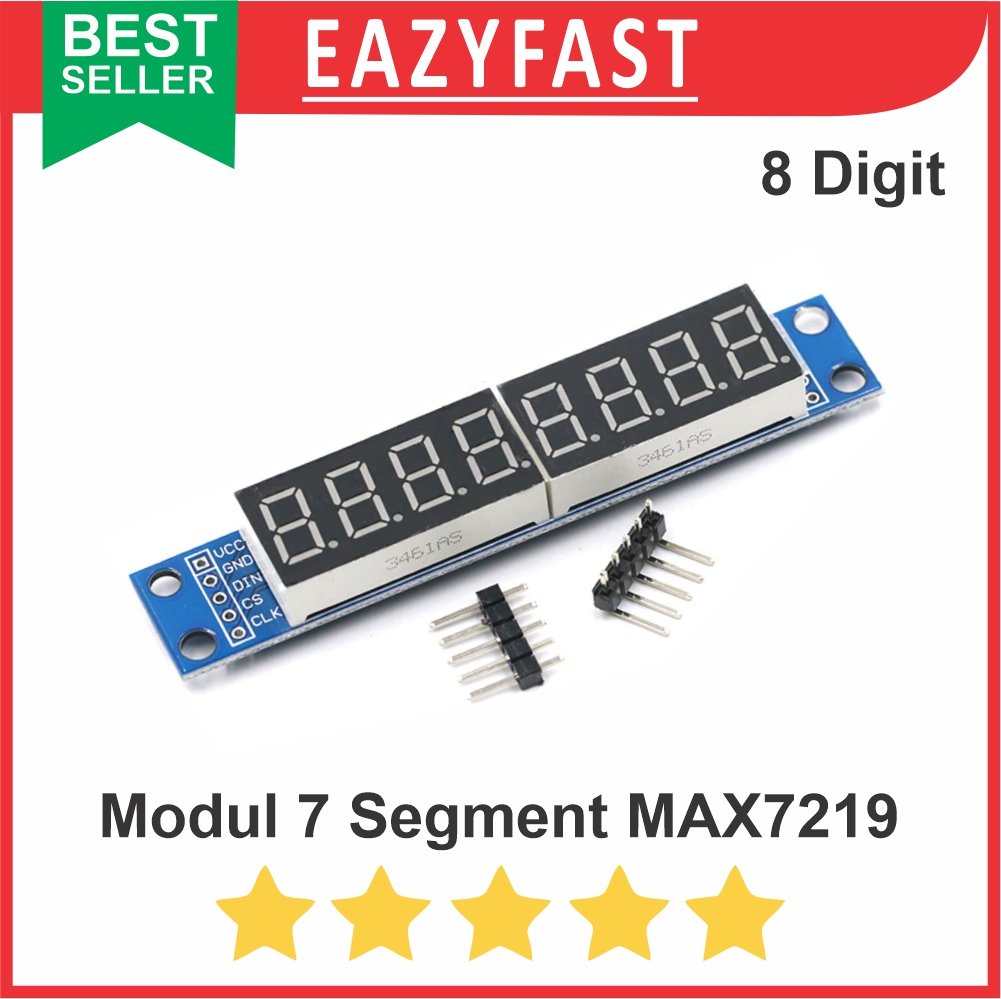

Modul 8 Digit LED Display 7 Seven Segment 7S Driver MAX7219 Max 7219 ESP Arduino Compatible Module

Digital Display Control Module MAX7219 8×7 Segment For Arduino 8-Digit Led Digital Display Control Module MAX7219 This is MAX7219 Based Serial 8-Digit 7 Segment LED Display Module. Also Called LED Tube Display. It has an integrated serial input / output common-cathode display drivers, which connects the microprocessor and 8 digit 7-segment digital LED display. A convenient four-wire serial interface can connect all common microprocessor. Each data can be addressed in the update without rewriting all displays. MAX7219 also allows the user to select each data encoding or no coding. The display also has a 150A low-power shutdown mode, analog and digital brightness control, a scan-limit register allows the user to display 1-8 bit data. Technical Specifications No of Digits: 8 Power: 5V. Color: Blue Interface Type: SPI, QSPI, MICROWIRE Serial Interface Maximum Clock : 10MHz Digit LED Color: Bright RED Cascading Ability: Can be chained or cascaded to drive unlimited units Display Driver: MAX7219 Material: PCB + Electronic Components Size: 82 x 15 x 18mm
