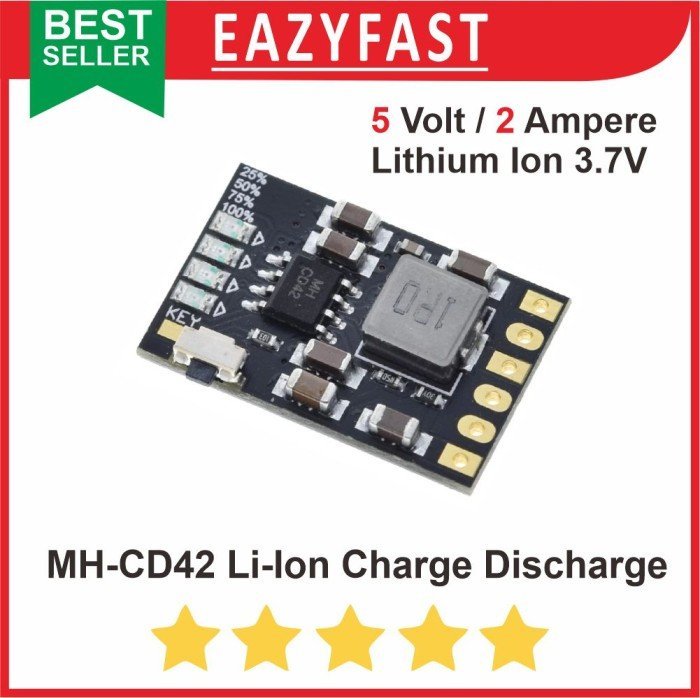

MH-CD42 Charge Discharge Module Baterai Li-Ion 18650 TP4056 BMS 5V 2A

Spesifikasi :
====================
Charging voltage: DC 4.5V-5.5V (DC 5V recommended)
Charging current: 0-2.1A
Charging quiescent current: 100uA
Full voltage: 4.2V+/-1%
Discharge current: 0-2.4A
Discharge quiescent current: 50uA
Discharge efficiency: up to 96%
Output voltage: 5V
Output current: 0-2.4A
Size: 25x16x4mm

Dilengkapi dengan berbagai fungsi proteksi untuk baterai lithium:
✔ Over-current protection (OCP)
✔ Overvoltage protection (OVP)
✔ Short Circuit Protection (SCP)
✔ Over-temperature protection (OTP)
✔ Charge and discharge power 4 level indicator

**Fungsi tiap port:
VIN: Charging Input +
GND: Charging Input –
BAT: Lithium Battery +
GND: Lithium Battery –
GND: Output –
OUT: Output +
KEY: Output Enable Trigger Port (Low Pulse Trigger)
