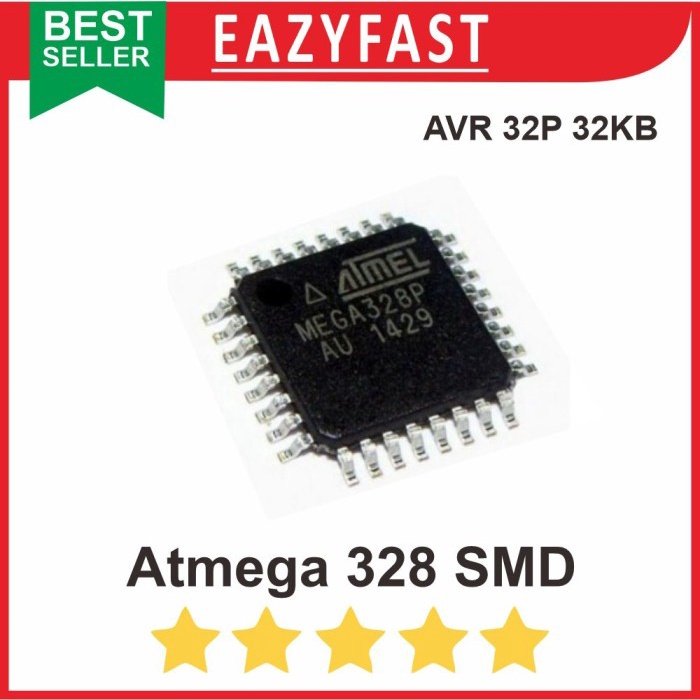

IC Atmel Atmega AT Mega 328 SMD Atmega328 Chip AVR Micro Controller uC

IC Atmel Atmega AT Mega 328 SMD Atmega328 adalah mikrokontroler AVR yang andal dan serbaguna yang dirancang untuk berbagai aplikasi elektronik.

– High-performance, Low-power AVR 8-bit Microcontroller
– Advanced RISC Architecture
– 130 Powerful Instructions – Most Single-clock Cycle Execution
– 32 x 8 General Purpose Working Registers
– Fully Static Operation
– Up to 16 MIPS Throughput at 16 MHz
– On-chip 2-cycle Multiplier
– High Endurance Non-volatile Memory segments
– 32K Bytes of In-System Self-programmable Flash program memory
– 512 Bytes EEPROM
– 1K Byte Internal SRAM
– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
– Data retention: 20 years at 85C/100 years at 25C
– Optional Boot Code Section with Independent Lock Bits
– In-System Programming by On-chip Boot Program
– True Read-While-Write Operation
– Programming Lock for Software Security
– Peripheral Features
– Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode
– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
– Real Time Counter with Separate Oscillator
– Three PWM Channels
– 8-channel ADC in TQFP and QFN/MLF package
– Eight Channels 10-bit Accuracy
– 6-channel ADC in PDIP package
– Six Channels 10-bit Accuracy
– Byte-oriented Two-wire Serial Interface
– Programmable Serial USART
– Master/Slave SPI Serial Interface
– Programmable Watchdog Timer with Separate On-chip Oscillator
– On-chip Analog Comparator
– Special Microcontroller Features
– Power-on Reset and Programmable Brown-out Detection
– Internal Calibrated RC Oscillator
– External and Internal Interrupt Sources
– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby

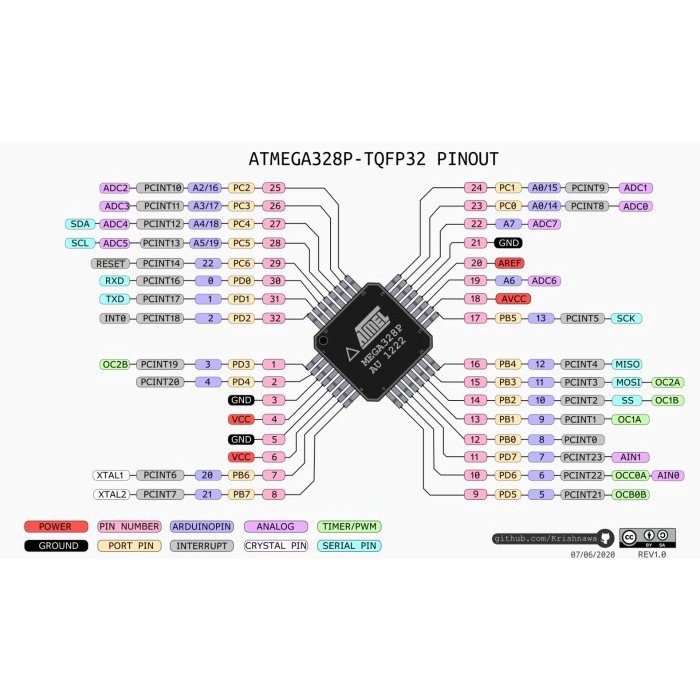

– I/O and Packages
– 23 Programmable I/O Lines
– 28-lead PDIP
– 32-lead TQFP
– Operating Voltages : 2.7 – 5.5V
– Speed Grades : 0 – 16 MHz
– Power Consumption at 4 Mhz, 3V, 25C
– Active: 3.6 mA
– Idle Mode: 1.0 mA
– Power-down Mode: 0.5 u
