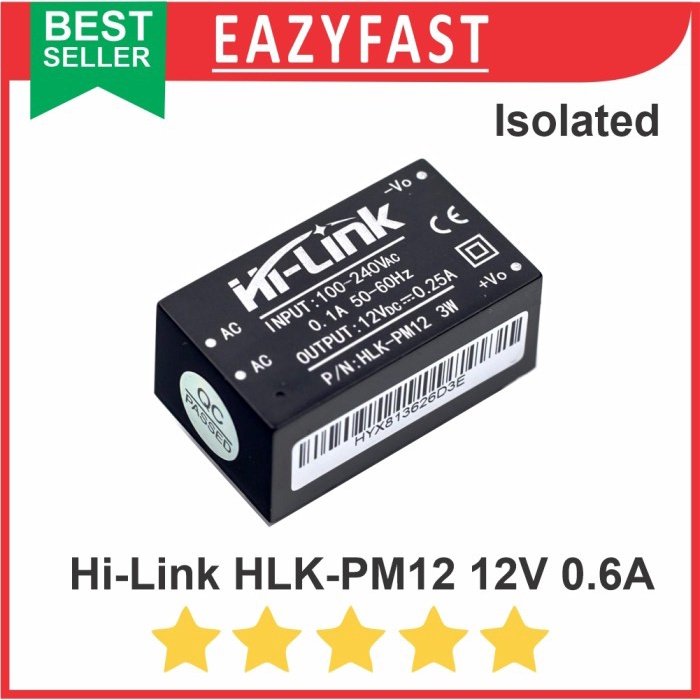

Hi-Link HLK-PM12 12v 12 V Volt AC t DC Hilink Power Supply PSU Adaptor

HLK-PM12 100V 240V Converter 220V AC to 12V DC Power Supply DC52

Features:
1. The ultra-thin, subminiature
2. The full voltage input (90 ~ 264 vac)
3. Low ripple and low noise
4. Output overload short circuit protection function
5. High efficiency and power density
6. Product design to meet the EMC and safety testing requirements
7. Low power consumption, green environmental protection, no-load loss < 0.1 W Aging and
8.100% load test
9. Meet the requirements of UL, CE,The quality guarantee period of 10.1 years

2. Environmental conditions
The name of the project
Technical indicators:Single bit
Working temperature: – 20-60 +degree
Storage temperature: + 80-40 -degree
Relative humidity: 5-95.%
The cooling way: Natural cooling
The atmospheric pressure: 80-106Kpa
The altitude :2000M or less
Vibration coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. Each along the X, Y, Z axes

3. The electrical characteristics
1. The input features (test) at room temperature.
The name of the project
The technical requirements:Single bit
The rated input voltage:100-100.VAC
The input voltage range:90-90.VAC
Maximum input current:0.2 or less a.
Input surge current;10 or less a.
Maximum input voltage:270 or less VAC
Input soft start: 50 or less MS
Efficiency of low input voltage: Vin = 110 VAC, output with 69 or more %
High input voltage: Vin = 220 vac, output with 70 or more %
Long-term reliability:MTBF 100000 or more H.
No load rated output voltage: +12 + / – 0.1 VDC
Full rated output voltage: +12 + / – 0.2 VDCA
Short time maximum output current: P 650 mA
The maximum output current for a long time 250 mA

Perkuat perangkat Anda dengan Adaptor Sumber Daya Hi-Link HLK-PM12 12v. Adaptor ini mengubah tegangan listrik dari AC ke DC dengan output 12 volt. Memiliki desain yang handal dan kompak, cocok untuk berbagai aplikasi elektronika yang membutuhkan daya yang stabil. Dapatkan kualitas dan efisiensi tinggi dengan Adaptor Hi-Link ini.
