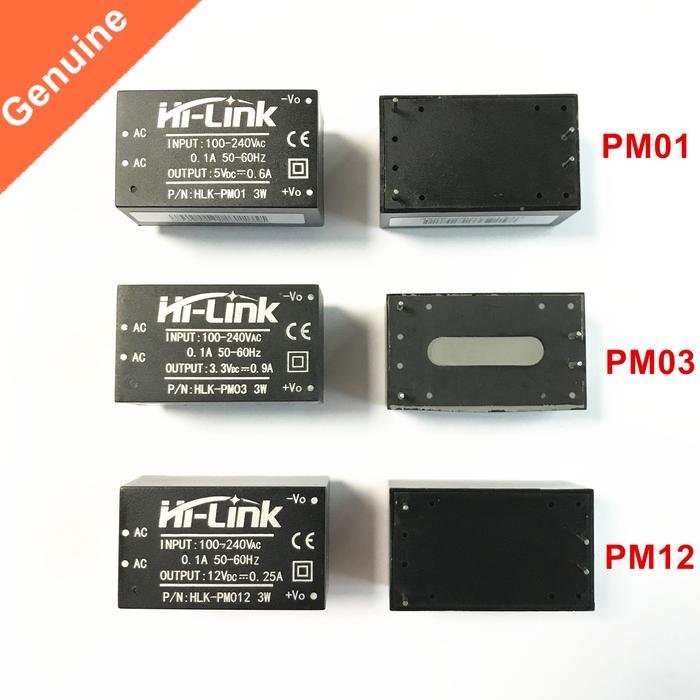

Hi-Link HLK-PM01 5v 5 V Volt AC to DC Hilink Power Supply PSU Adaptor

HLK-PM01 Converter AC-DC 220V to 5V Step Down Buck Power Supply DC55

Features:
1. The full voltage input (90 ~ 264 vac)
2. Low ripple and low noise
3. Output overload short circuit protection function
4. High efficiency and power density
5. Product design to meet the EMC and safety testing requirements
6. Low power consumption, green environmental protection, no-load loss < 0.1 W
7.100% load test
Input : 100-240Vac, 50-60Hz
Output : 5V DC/3W

The name of the project
Technical indicators:Single bit
Working temperature: – 20-60 +degree
Storage temperature: + 80-40 -degree
Relative humidity: 5-95.%
The cooling way: Natural cooling

The atmospheric pressure: 80-106Kpa
The altitude :2000M or less vibration
Vibration coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min.

The technical requirements:Single bit
The rated input voltage:
The input voltage range:
Maximum input voltage:270 or less VAc
Efficiency of low input voltage: Vin = 110 vac, output with 69 or more %
High input voltage: Vin = 220 vac, output with 70 or more

Perkuat perangkat Anda dengan Adaptor Sumber Daya Hi-Link HLK-PM01 5v. Adaptor ini mengubah tegangan listrik dari AC ke DC dengan output 5 volt. Memiliki desain yang kompak dan andal, cocok untuk berbagai aplikasi elektronika yang membutuhkan daya yang stabil. Dapatkan kualitas dan efisiensi tinggi dengan Adaptor Hi-Link ini.
