ESP01S ESP8266-01S ESP 8266 01S 01 S Wifi Wireless Internet Arduino M

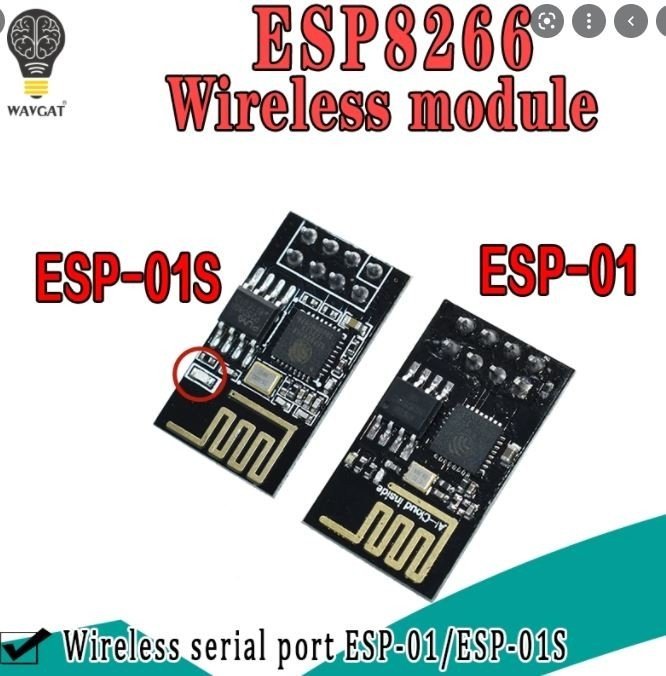

ESP-01S

THIS IS THE UPGRADATION OF ESP-01 BOARD, HAD SMALL IMPROVEMENT ON PCB.

FEATURES:

1MB (8Mbit) Flash size.
Very competitive price
AP, STA, AP+STA modes available.
Very simple AT commands, easy to use.
Internal LWIP interface.

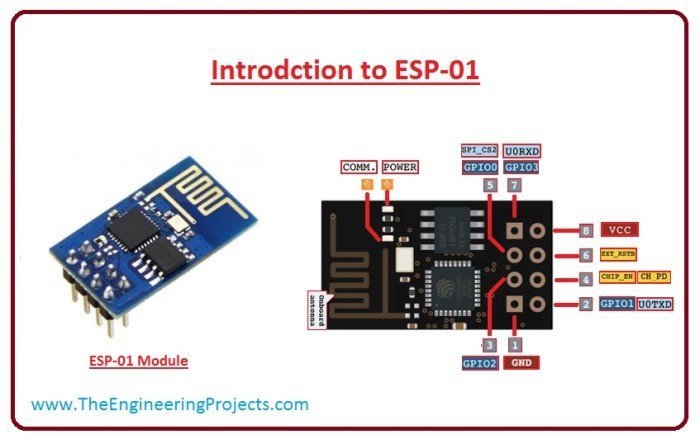

Four pins interface, VCC-3V3, GND, TXD and RXD. Two extra GPIOs can use.
AT commands firmware. New IC ESP8266ex
Package All unit packaing is in tape reel

Specifications:
-802.11 b/g/n
-Wi-Fi Direct (P2P), soft-AP
-Integrated TCP/IP protocol stack
-Integrated TR switch, balun, LNA, power amplifier and matching network
-Integrated PLLs, regulators, DCXO and power management units
– +19.5dBm output power in 802.11b mode
-Power down leakage current of 10uA
-1MB Flash Memory
-Integrated low power 32-bit CPU could be used as application processor
-SDIO 1.1 / 2.0, SPI, UART
-STBC, 11 MIMO, 21 MIMO
-A-MPDU & A-MSDU aggregation & 0.4ms guard interval
-Wake up and transmit packets in < 2ms
-Standby power consumption of < 1.0mW

harga untuk 1 (pcs/pasang/set)
barang ready stock, silahkan langsung diorder saja ya gan..
seluruh pengiriman dipacking dengan aman menggunakan bubble wrap gratis
eazyfast store sudah berpengalaman menjual barang part teknik sejak 2017
jangan lupa utk selalu videokan paket yang datang dari kami, sebagai alat bukti komplain jika ada ke-tidak-sesuaian barang
jika perlu pengadaan stock banyak dan minta foto detail produk aktual bisa menghubungi admin
