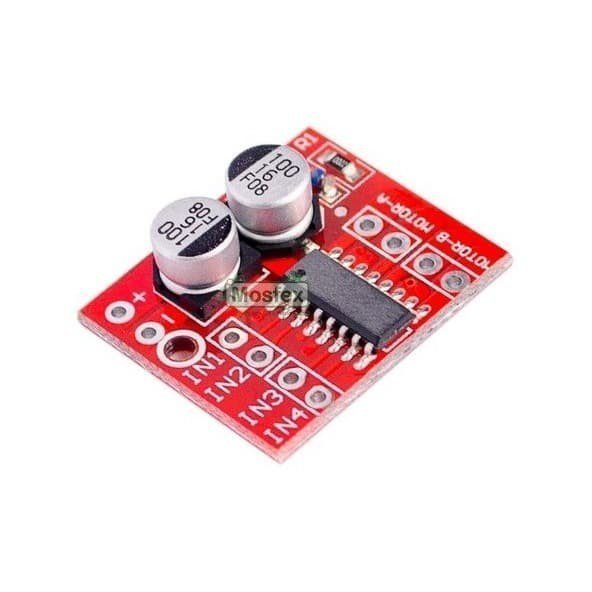

Driver Motor DC Mini H Bridge Dual Channel MX1508 bkn L9110S L298N

Motor Driver dual H bridge MX1508 1.5A pengganti L298N L298 Mini

Spesifikasi modul:
1.Module supply voltage:2V-10V
2.Signal input voltage:1.8-7V
3.Single working current:1.5A with Peak current up to 2.5A
5.Low standby current (less than 0.1uA)
6.Built-in common conduction circuit, the input terminal vacant, the motor does not malfunction
7.Size: 24.7 * 21 * 7mm
8.Mounting hole diameter: 2 mm

Driver Motor DC Mini H Bridge Dual Channel MX1508 bkn L9110S L298N
