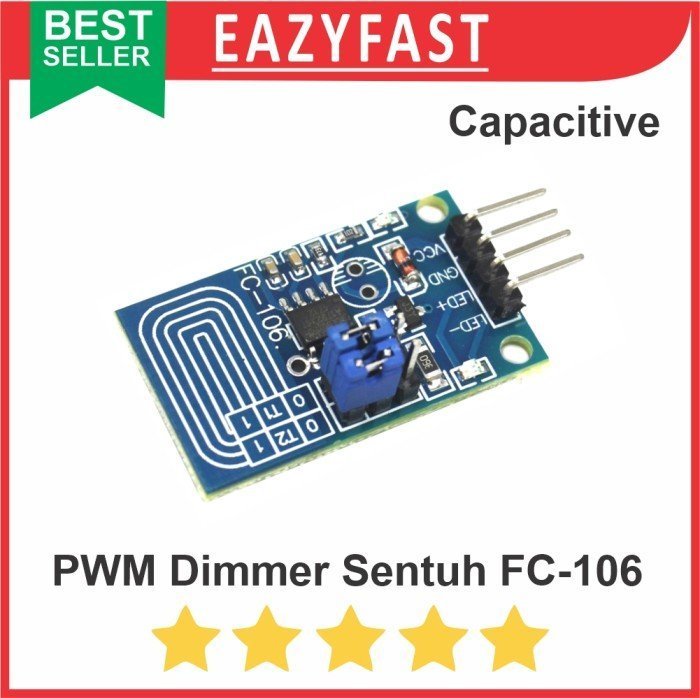

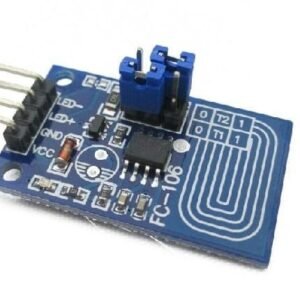

Saklar Sensor Sentuh PWM FC-106 Touch Dimmer Push Button Led Control

Saklar Sentuh Dimmer multifungsi yang bisa dipakai untuk mengatur brightness dari Lampu/LED dan peralatan lainnya.

**Video Demonstrasi Alat:
https://www.youtube.com/watch?v=3Be7A4xyfsQ

Terdapat 2 jumper yg bisa diset kombinasi menjadi 4 mode:

**Mode 1: 3 tahap brightness
Sentuh 1: brightness level 1
Sentuh 2: brightness level 2
Sentuh 3: brightness max
Sentuh 4: off
Sentuh lama: –

**Mode 2: set brightness dan control
Sentuh lama: brightness meningkat sampai sentuhan dilepaskan
Sentuh 1: brightness meningkat hingga maximum
Sentuh 2: brightness menurun hingga off

**Mode 3: control
Sentuh 1: brightness meningkat dari off hingga maximum
Sentuh 2: brightness menurun dari maximum hingga off
Sentuh lama: –

**Mode 4: ON/OFF
Sentuh 1: ON
Sentuh 2: OFF
Sentuh lama: brightness meningkat hingga level yg diinginkan tapi tidak pernah off. Sentuhan berikutnya baru off.

Features and benefits:
1. Can work on media (such as glass, acrylic, plastic, ceramic, etc.) to achieve isolation protection case touch function, safe.
2. Voltage range can choose between 2.4 to 4.5V
3. Application circuit is simple, few peripheral devices, easy processing and low cost.
4. Power interference and anti-interference characteristics. Touch response sensitivity and reliability is not affected by interference.
5. Usage: LED modules can be controlled, with lights and other products. Suitable for indoor lamps, LED lighting dimmer, DIY lights dimming.
6. Dimming mode: stepless PWM Dimming.
7. Wiring: PCB board (VCC, GND) for the power input, (LED +, LED-) is connected to the positive and negative grade LED lights.
