Relay WLC Auto Water Level Control Floatless Sensor Pompa Air Otomatis

Features:
Strong compatibility, can be used in conjunction with a variety of liquid level sensor
Strong protection, with waterproof pump idling protection and water level overflow detection output.
Relay dry node output, can be applied to a variety of load control
Control of diversification, manual or automatic mode control of water pump
The installation is simple and convenient, the screw can be positioned and installed, and the electric box track can also be installed.

Specification:
Model: LC25A01
Weight: 28g/1oz
Working voltage: DC 12-15V(AC 9-12V)
Standby current 10MA
Working current 40MA
Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
Size: 54*27*19mm/2.1*1.1*0.7inch
Application:
Home water tower automatic water supply system.
Aquarium fish tank water changer system.
Conductive liquid automatic control.
Automatic feeding system for poultry and livestock.
Farm automatic water supply system.
And other occasions that require automatic water supply and water exchange.
Solenoid valve water pump motor automatic control.

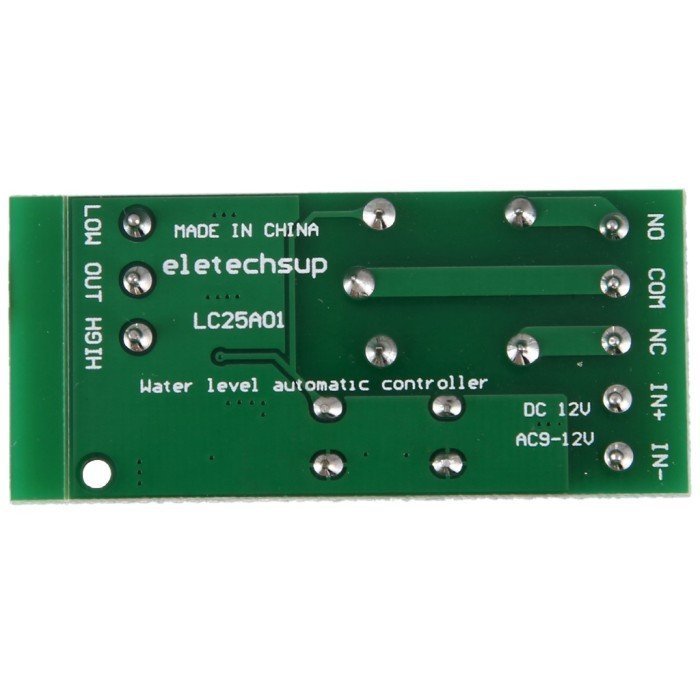

Interface description:
HIGH : Upper limit probe
OUT : Output probe
LOW : Lower limit probe
IN+ : Power terminal 1 (regardless of positive and negative)
IN- : Power terminal 2 (regardless of positive and negative)
NC: Relay normally closed contact
COM: Relay common contact
NO: Relay normally open contact

Package List:
1 x Level Controller Module
